LeoXZ XGT Ultimate

FEATURE

1. 295mm polyurethane grip, produced by high-precision molds, has a special coating on its surface, and its delicate texture satisfies various driving needs.

2. The back cover and paddles are processed using CNC technology and coated with black anodizing to achieve optimal appearance and lasting durability.

3. The front panel and paddles are made of 4mm 3K carbon fiber with high-end textured coating.

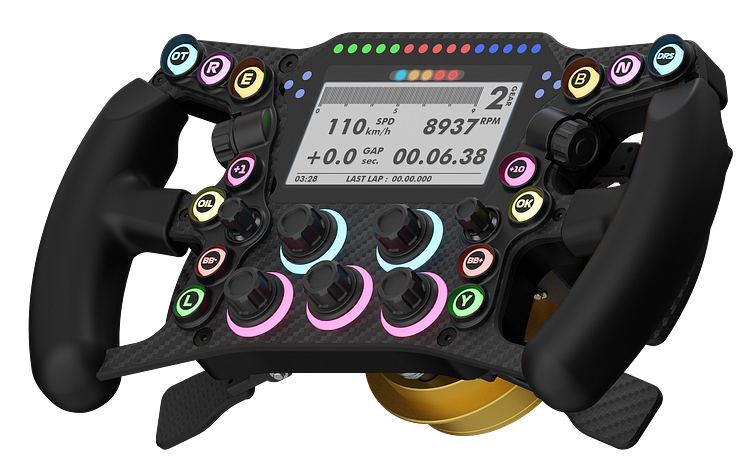

4. 4.3 inch IPS screen with a resolution of 800x480 pixels and 60fps refresh rate, and its dashboard can be customized through SimHub.

5. Low latency 2.4G wireless functionality(need to purchase XGT Wireless Kit separately).

6. In Fanatec mode, it is compatible with PS4/5 (tested only on DD Pro and GT7, need to purchase XGT Wireless Kit separately)

7. Supports wireless SimHub dashboards.

8. 21+14+5 RGB LEDs that can be customized through SimHub.

9. Scratch resistant Gorilla Glass, up to 2mm thick.

10. 14 RGB buttons with 500g of actuation force, 2 Multi-directional joystick with integrated encoder and 5 push-button encoders, 2 thumb knob.

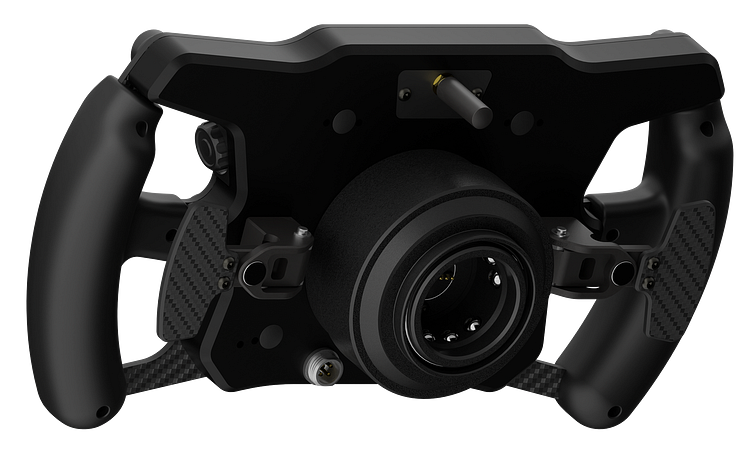

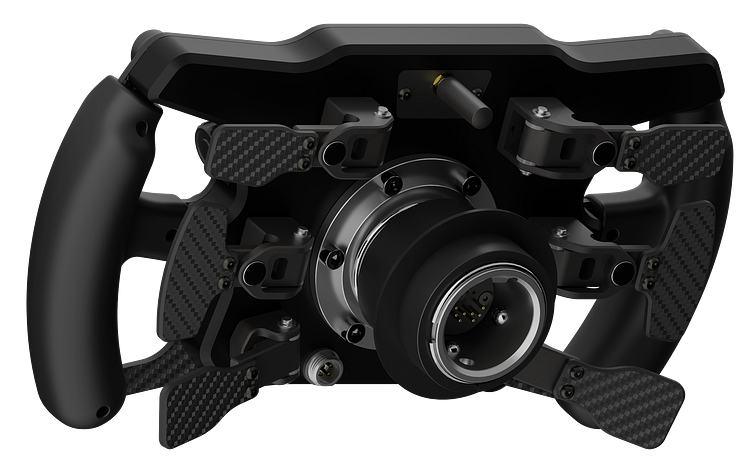

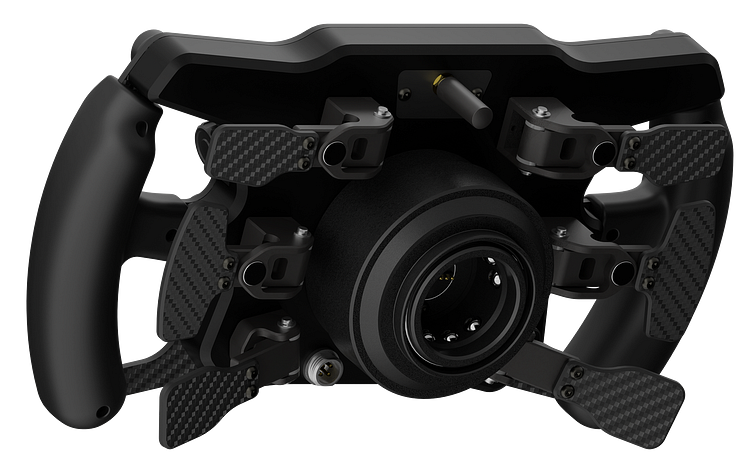

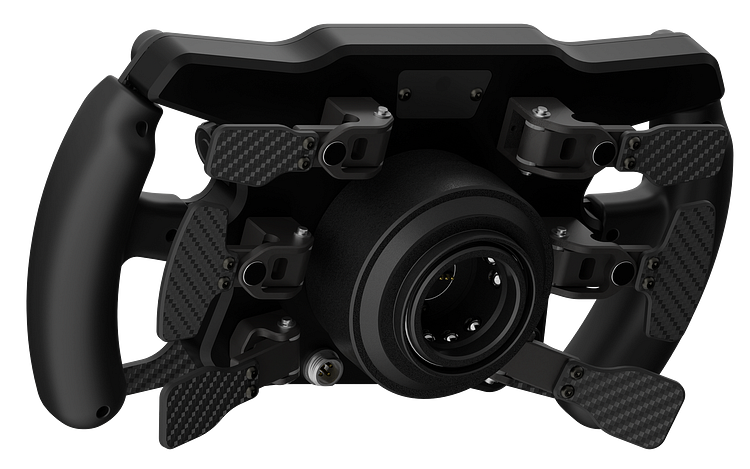

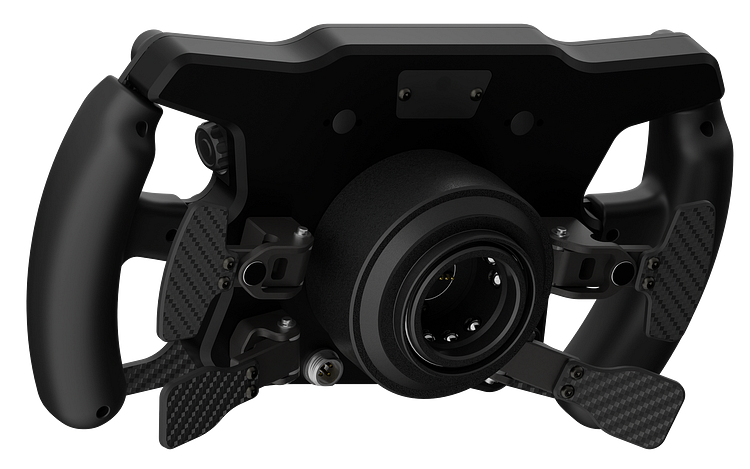

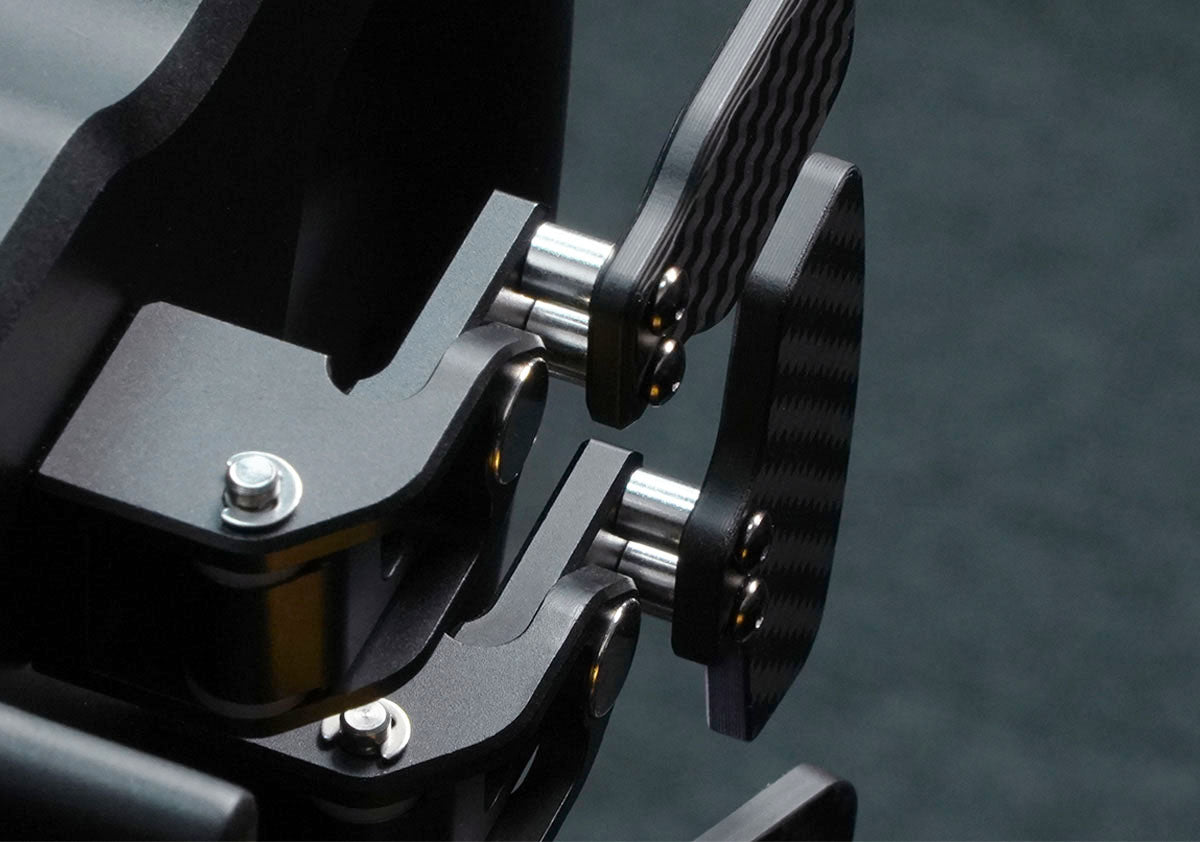

11. It comes with a standard magnetic shifter paddle, and additional clutch paddles and option paddles are available as options.

12. The clutch paddles can be set to bite point mode, axis mode.

13. All paddles use non-contact Hall sensors for long-lasting durability.

14. 70mm diameter QR mounting hole.

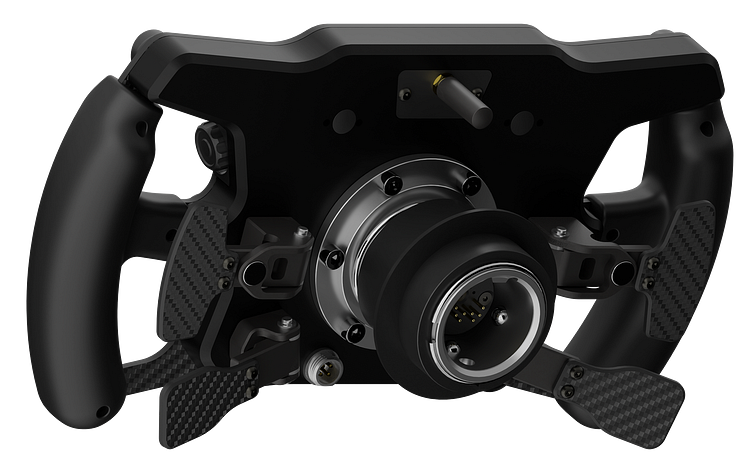

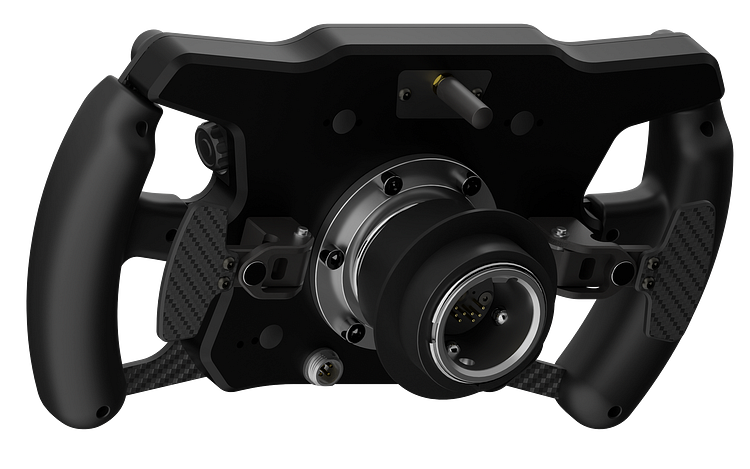

15. It can be connected to Leoxz Fanatec QR through the QR cable interface to unlock Fanatec base torque.

16. Fanatec mode for compatibility with PS4/5 on Fanatec bases. Supports access to the Fanatec Tuning Menu for adjusting base settings.

17. Equipped with a industrial-grade GX12 threaded USB interface and a USB double-twisted cable with nylon tensile resistance, subjected to 100,000 cycles of cable twisting tests.

COMPATIBLE HARDWARE

Simucube SC1, SC2

Fanatec DD1, DD2, CSW 2.5(Only USB), CSL DD, DD Pro, DD+ (Base torque needs to be unlocked with Leoxz Fanatec QR)

Simagic Alpha Mini, Alpha, Alpha ultimate

Moza R12 (The V1 base does not support QR power supply. The V2 base supports QR functionality, but Leoxz has only tested it on R12, so the compatibility with other bases cannot be guaranteed. In this case, USB cable can be used for power supply) Note: Not compatible with R16.

Asetek Direct Drive Wheelbas( Installation of the Invicta Quick Release Adapter is required for the steering wheel)

If using Simagic, Moza, or Fanatec base, the steering wheel can be powered wirelessly through QR. For the Simagic base, since it cannot provide a high-power supply to the steering wheel, to ensure stable operation of the wheel, it is necessary to reduce(set 50%-80%) the button Brightness to minimize the power consumption of the steering wheel.

SOFTWARE

SimHub and SimBridge

SimHub for getting telemetry data

SimBridge is used to receive SimHub data and send it send to XGT

PACKAGING

Dimensions (LxWxH): 33cm x 19cm x 14cm

Weight: 1.5kg(QR version 2.0kg)

INCLUDED

XGT Ultimate Steering Wheel (QR and Wireless kit are optional)

USB-GX12 Cable

Custom Stickers

Nylon Tweezers

6mm height paddle spacers/M3x14 bolts (You can choose whether to install it based on the size of your hand, x4 for Shifter Only and Shifter & Clutch versions, x8 for Shifter & Clutch & Option version)
